Used 2017 Jayco Redhawk 26XD

Motor Home Class C

Stock #56785D

Saratoga, NY

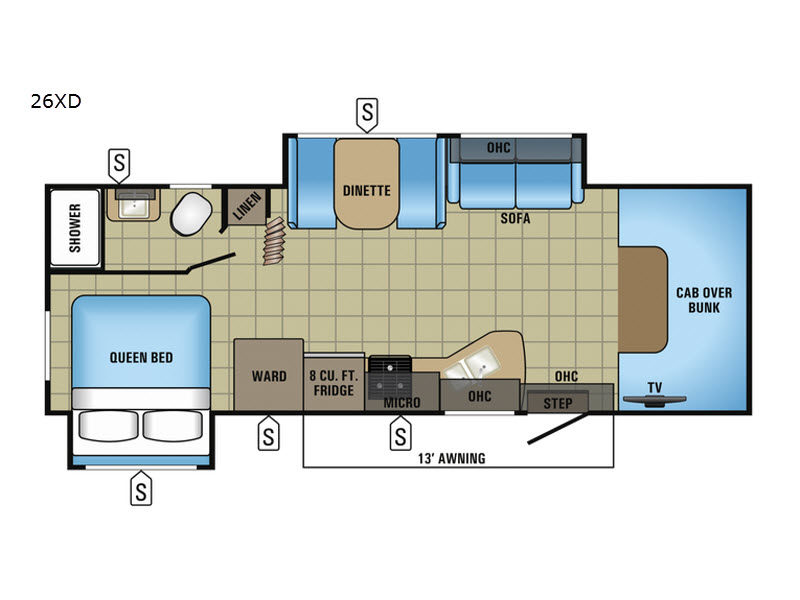

Floorplan - 2017 Jayco Redhawk 26XD

1 of 30

+30

Specifications

Sleeps	7	Slides	2
Length	28 ft 8 in	Ext Width	8 ft 4 in
Ext Height	11 ft 6 in	Int Height	7 ft
Hitch Weight	7500 lbs	GVWR	14500 lbs
Fresh Water Capacity	47 gals	Grey Water Capacity	41 gals
Black Water Capacity	32 gals	Furnace BTU	31000 btu
Fuel Type	Gas	Miles	31519
Engine	Triton 6.8 EFI V10	Chassis	Ford E-450
Horsepower	305 hp	Fuel Capacity	55 gals
Wheelbase	181 in	Number Of Bunks	1
Available Beds	Queen	Torque	420 ft-lb
Refrigerator Size	8 cu ft	Convection Cooking	Yes
Cooktop Burners	3	Number of Awnings	1
LP Tank Capacity	42	Water Heater Capacity	6 gal
Water Heater Type	DSI Gas/Electric	AC BTU	15000 btu
Basement Storage	35 cu. ft.	TV Info	Above Cab 32" LED TV
Awning Info	13' Power	Gross Combined Weight	22000 lbs
Shower Type	Standard	VIN	1FDXE4FS3GDC50900

Features

Standard Features (2017)

Customer Value Package (Mandatory)

J-Ride® Package: Computer-balanced driveshaft, standard front and rear stabilizer bars, Hellwig helper springs, rubber isolation mounts
32" TV LED
8 cu. ft. Refrigerator w/Manual Controls
1000W Inverter
Back-up Camera & Monitor
Black Tank Flush
Cream Fiberglass Sidewalls
Frameless Windows
Front Fiberglass Cap
Auxiliary Input Jack
Power Awning, Tank Heating Pads

Driving Equipment

Ford E-450 chassis
- Triton 6.8L EFI V-10 305 HP engine with 420 lbs./ft. torque
- 6-speed automatic TorqShift series transmission with overdrive
- 14,500-pound GVWR
- 22,000-pound GCWR
- 7,500-pound hitch with 7-pin plug
Chevrolet 4500 Chassis
- 6L Vortec V8 342HP engine with 373 pound-feet torque
- Hydra-matic 6-speed automatic transmission with overdrive
- 4,200-pound GVWR
- 20,000-pound GCWR
- 5,000-pound hitch with 7-pin plug
JRide
120-amp alternator
55-gallon fuel tank
Driver and passenger air bags
Power anti-lock brakes with power steering
Tilt steering wheel
Auxiliary start switch
A/C and cruise control
Remote-controlled, side-view mirrors
Power windows and door locks
Third brake light

Exterior

Vacuum-bonded, laminated roof, floor and sidewalls
Bead-foam insulation (R-15 max roof, R-9 max floor, R-5 max walls)
Aluminum running boards
Fiberglass, radius-cornered entrance door with screen door
Electric-powered entrance step
Pass-through storage compartment with light (select models)
Onan 4,000-watt MicroQuiet generator
42-lb. propane tank
120V G.F.C.I.-protected exterior receptacle
12V electrical system with 120V, 60-amp power converter
30-amp power cord
Slideout battery tray with 12V house battery
Outside shower
4" bumper-tube sewer hose storage
Roof ladder (based on floorplan)
Leveling jack prep

Interior

84" ceiling height
Honey Cherry cabinetry and doors with oil-rubbed bronze cabinet hardware
Ball bearing drawer guides
3-burner range with 9,000-BTU SuperBurner and piezo igniter
Convection microwave oven (23XM, 26XD, 29XK, 23X2, 26X1)
12V demand water pump
6 gallon gas/electric DSI auto-ignition water heater
Water filtration system
Dream Dinette™ mechanism, easily raises and lowers dinette tabletop (23XM, 26XD, 31XL, 23X2, 26X1)
Lap safety belts on all living area seats
Linoleum flooring
Interior command center
Cable TV hookup with RG-6 coax
Digital antenna with signal booster
15,000-BTU ducted air conditioner
31,000-BTU auto-ignition furnace with wall thermostat
ABS shower with decorative surround
Removable clothing rod in shower
Skylight in shower
Toilet with foot flush
Queen-sized bed with bedspread
Under-bed storage
Large wardrobes
Full cab-over bunk with headboard (750-lb. rating)
Bunk beds (300-lb. rating) (31XL)

Options

Canadian Standards (23XM, 26XD, 29XK, 31XL)
Customer Value Package - 32" TV LED, 8 cu. ft. Refrigerator w/Manual Controls, 1000W Inverter, Back-up Camera & Monitor, Black Tank Flush, Cream Fiberglass Sidewalls, Frameless Windows, Front Fiberglass Cap, J-Ride Package, Auxiliary Input Jack, Power Awning, Tank Heating Pads
Hydraulic Auto Leveling Jacks

See us for a complete list of features and available options.

All features and specifications are subject to change.
